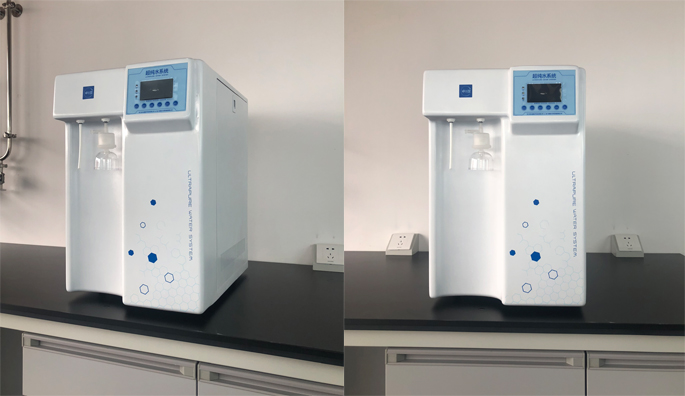

ZYM ultra pure water system

ZYM Deionized Water Treatment Plant For Lab

The model ZYM series produce the triple distilled water plant for lab with resisivity 18.25 MΩ.cm , which is triple distilled water 100% pure H2O without any minerals .

Model	ZYM-I	ZYM-II	ZYM-III	ZYM-IV
Optional capacity( L/H)	10L/H,20L/H
Flow rate	Up to1.5- 2.0 liters/minute(with pressure tank)
Feed water requirements	Tap water, temperature:5-45°C,pressure:1.0-5.0Kg
RO water quality
Condutivity(25°C)	2-10μs/cm
Ion rejection rate	99% (new RO membrane)
Organic rejection rate	>99%
Particles and bacteria rejection rate	>99%
Ultrapure water quality
Resistivity(25°C)	18.25MΩ.cm
Bacteria	＜0.1cfu/ml
Particle(>0.1μm)	＜1/ml
Heavy metal ion	＜0.1ppb
Endotoxin(Pyrogens)	N/A	N/A	N/A	≤ 0.001EU/ml
TOC Level***	＜ 10 ppb	＜ 10 ppb	＜ 5 ppb	＜ 5 ppb
Dimension and weight	Length×Width×Height:530×380×550mm, 30~40Kg
Electrical requirements	AC110-240V, 50/60Hz
Power(W)	30W-50W
Terminal disinfection filter (TF)	N/A	yes	yes	yes
UV lamp	N/A	N/A	yes	yes
UF	N/A	N/A	N/A	yes
Standard configuration	Main body (Including 1 set of cartridge)+pressure tank

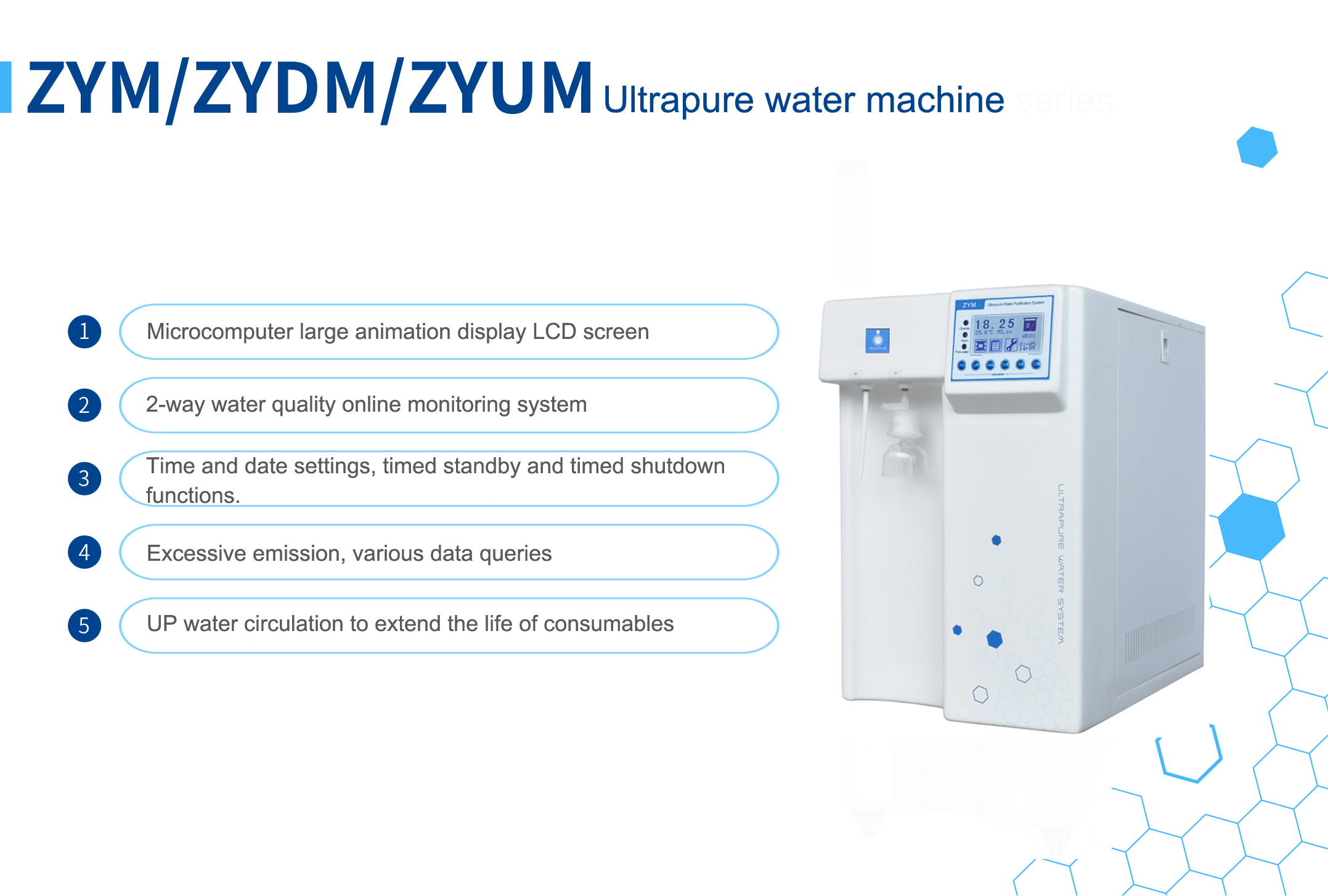

1.Ultra-pure water circulation to extend the life span of consumable parts within ultra-pure water purification system.
2.Automatic RO membrane anti-fouling flushing and manual forced flushing procedures to extend the life span of RO membrane.
3.Comprehensive system maintenance and safety alarm:
4. Equipped with USB Host interface to support historical alarm records and water taking record data export function, to
facilitate the later access to historical operation conditions data.
5.Adopt more advanced, user-friendly membrane push button to take water.
6.Semi-transparent medical grade PP material do not produce secondary pollution.
7.Humanization design of manual/automatic water taking mode,Timing(1-99min),customization water taking (0.1-18.25MΩ.cm)

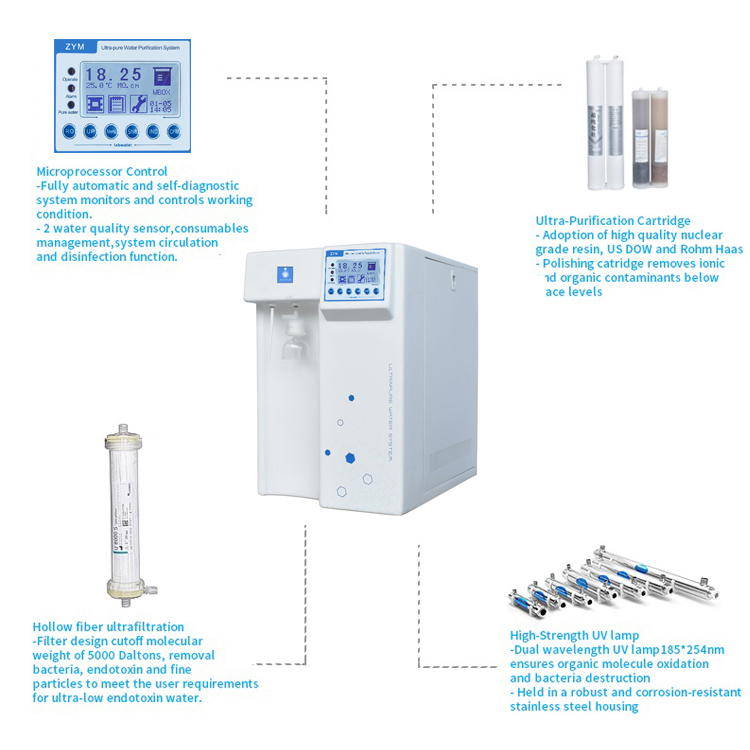

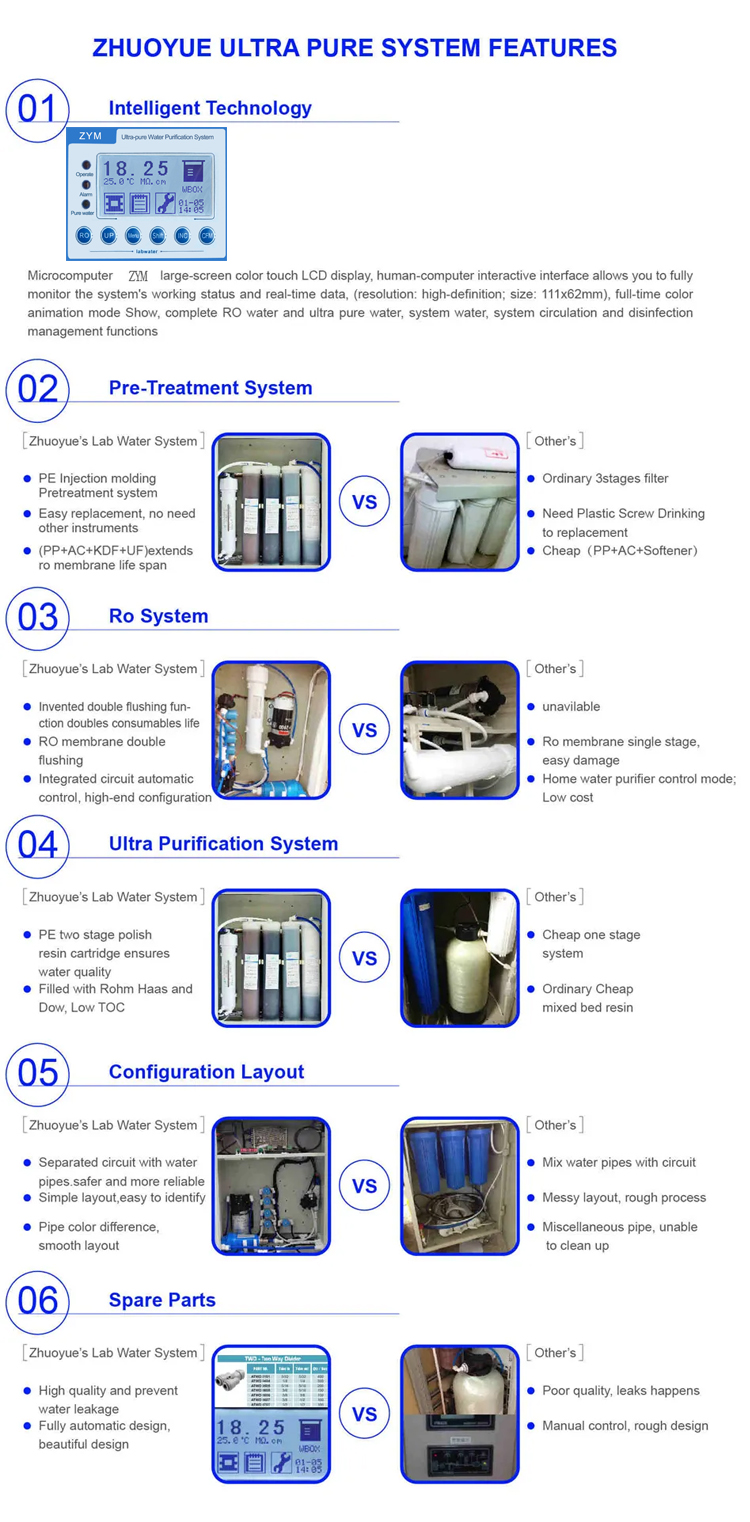

The technology process is divided into source water pretreatment system,reverse osmosis system and ultra-pure system.
5 stage purifying system as below , purification methods and parameters to avail the purity and classify the impurities to be
removed from the original water (tap water or natural one) from what one wants to generates the purified water.
1. Source water pretreatment system: PP fiber filter + AC filter + Softener
2. Reverse osmosis system: It has high removal rate more than 99% for high valent ions, colloids, bacteria and organic matter
(including endotoxin) with molecular weight greater than 300Dalton.
3. Ultra pure system: Ion exchange resin using H + exchange cation out the water in the filter ,using OH- exchange anions out the
water , the replaced H + and OH- combined to produce H2O, ultra-purified column filling the United States Dow UPW-450 Ultra-pure
water for nuclear grade resin, the water resistance of up to 18.25 MΩ.cm.

Why Choose Us

Why choose us :

1. Professional manufacturer : More than 10 years experience in prodcuing pure water treatment system .
2. Strict time control : Ensure delivery time.
3. Factory strength: The factory area is more than 2000m3, more than 100 workers.
4. After-sales service : 24 Hours online for service.
5. Customized is available. Sample order is available.
