HClO Slightly Acidic Electrolyzed Water Device

Products Description

ZYWS hypochlorous acid water generatorZYWS hypochlorous acid water generator is a hypochlorous acid-based water generator specially developed by our company for water channel sterilize and diagnosis and treatment of oral comprehensive treatment tables.

Compared with traditional use effect
	effect	shortcoming
HClO water	Continuous sterilize, thorough sterilize, non-toxic through the mouth, High security, automatic sterilize and long-lasting antibacterial.	High equipment cost
peroxyacetic acid	All belong to medium and high-efficiency chemical sanitizer, which can sterilize waterways and control the formation of biofilms. However, it cannot replace water for diagnosis and treatment, and frequent chemical sterilize is required, which increases the workload of medical staff chemical sterilize is required, which increases the workload of medical staff	The manual sterilize operation is complex, frequent sterilize, easy parts corrosion, water leakage, valve damage, There is a risk of chemical residues and has certain toxicity
Hydrogen peroxide
Chlorine Disinfectant
ozone water		Low ozone sterilize rate, easy to escape, strong corrosion

Model list

Model	ZYWS-Q4	ZYWS-Q2	ZYWS-Q2-60
Daily mode	8000mL/min±10%	4000mL/min±10%	2000mL/min±10%
Disinfection mode	4000mL/min±10%	2000mL/min±10%	1000mL/min±10%
slightly acidic water index	Main sterilizing ingredient: hypochlorous acid Effective chlorine content: 5-10mg/L (daily mode) Effective chlorine content: 40mg/L～80mg/L (Disinfection mode) pH ：5.0~6.5 , ORP≥600mv
Influent water quality	Water inlet pressure: 0.2~0.3MPa demineralized water or pure water (preferably pure water)
electrolyte	Liquid A: 3L/barrel Liquid B: 1000G/pouch		Liquid A: 1L/barrel Liquid B: 300G/pouch
power supply	220V/50HZ
Power	≤150W	≤100W	≤100W
Product size	5605901300mm		420520590mm
Water tank	40L (built-in), optional 100L/200L/300L external		optional 40L/100L external

Product features

1.Colorless transparent liquid, non-toxic, non-irritating, non-residue, broad-spectrum sterilize, rapid, easy to use.

2.Concentration control by different levels is adopted, and one machine can be used for two purposes, completely solving the water sterilize and diagnosis and treatment water of the comprehensive treatment table, and effectively reducing microbial pollution.

3.It adopts PLC intelligent control and touch screen man-machine interface, which is easy to operate and can detect various water quality indicators online to ensure that the produced water is qualified.

4.Multiple uses, can replace compound borax gargle, and is suitable for sanitation of hands, skin and mucous membranes, general object surfaces and environmental surfaces, and sterilize of textile items.

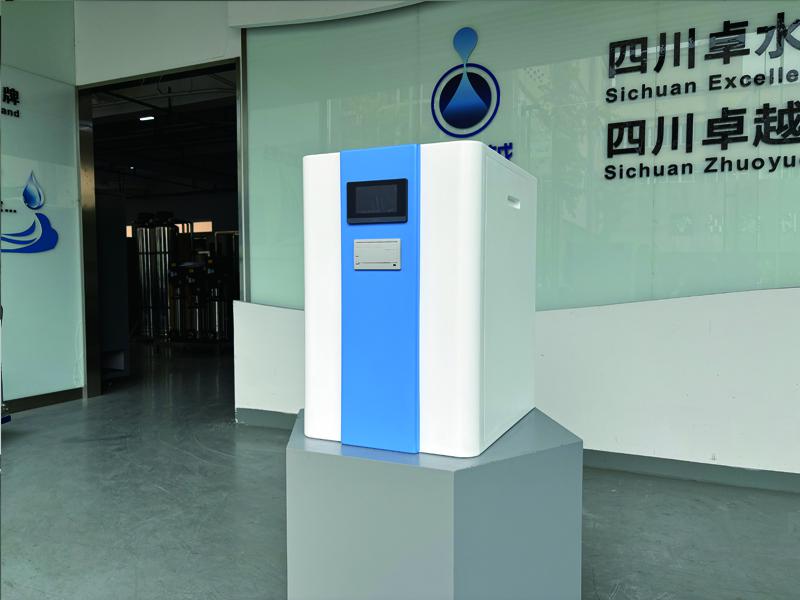

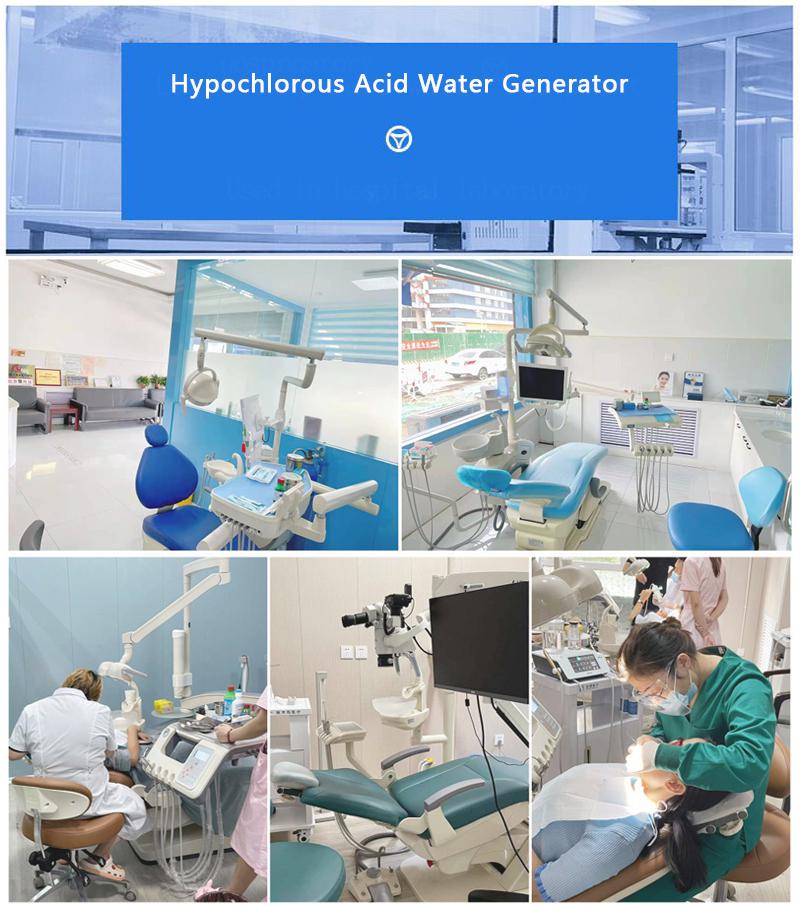

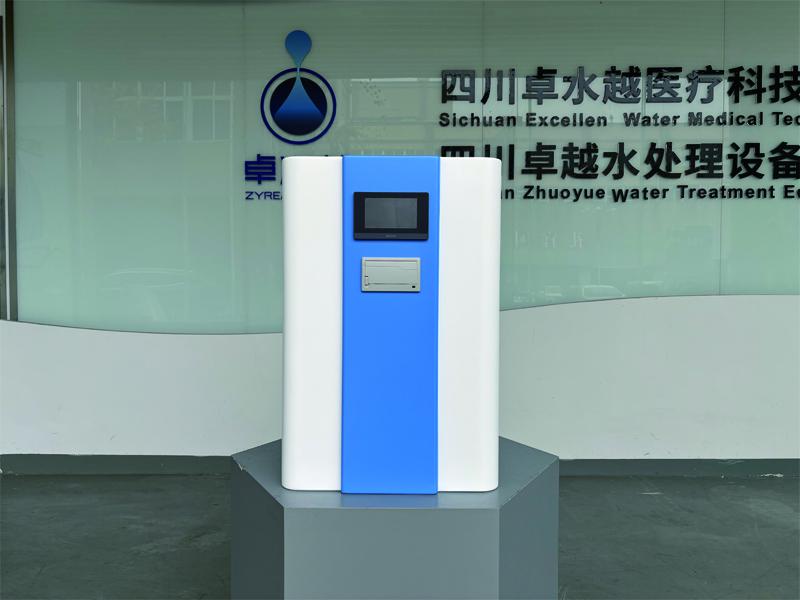

Product exhibition
